YY 3520

Intended usage:

Specializing in the design and manufacture of key components related to computed tomography CT medical imaging diagnostic systems.

Service Hotline:86(512)36872111

3.5MHU X-ray tube housing assembly


Tech specs:

Model

YY 3520N

YY 3520M

YY 3520G

Nominal voltage

140kV

140kV

140kV

Anode heat storage capacity

3.5MHU

3.5MHU

3.5MHU

Maximum anode heat dissipation rate

8.75kW

8.75kW

8.75kW

Nominal continuous rating

4200W

4200W

4200W

Anode rotation

10800RPM

10800RPM

9000RPM

Focal spots

Small focal spot:0.6X0.8
Large focal spot:1.2X1.4

Small focal spot:0.7X0.8
Large focal spot:1.2X1.4

Small focal spot:0.7X0.8
Large focal spot:1.2X1.4

Focal spot deflection

Null

Null

Null


Intended usage:

Specially designed and manufactured to be operated as part of a diagnostic imaging system.

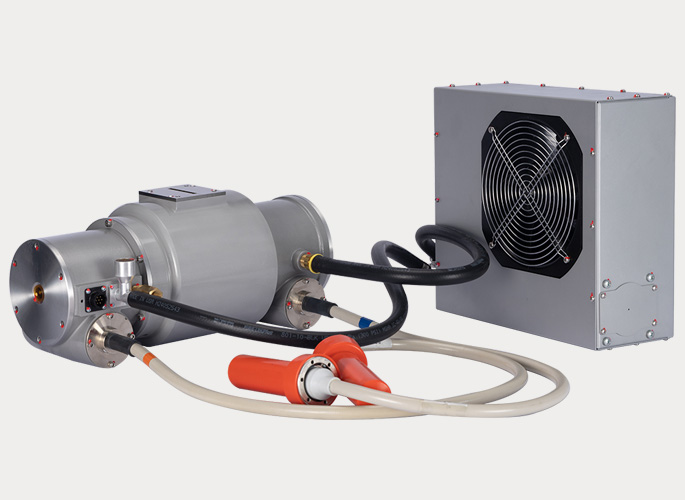

Product images:

YY 3520.jpg
